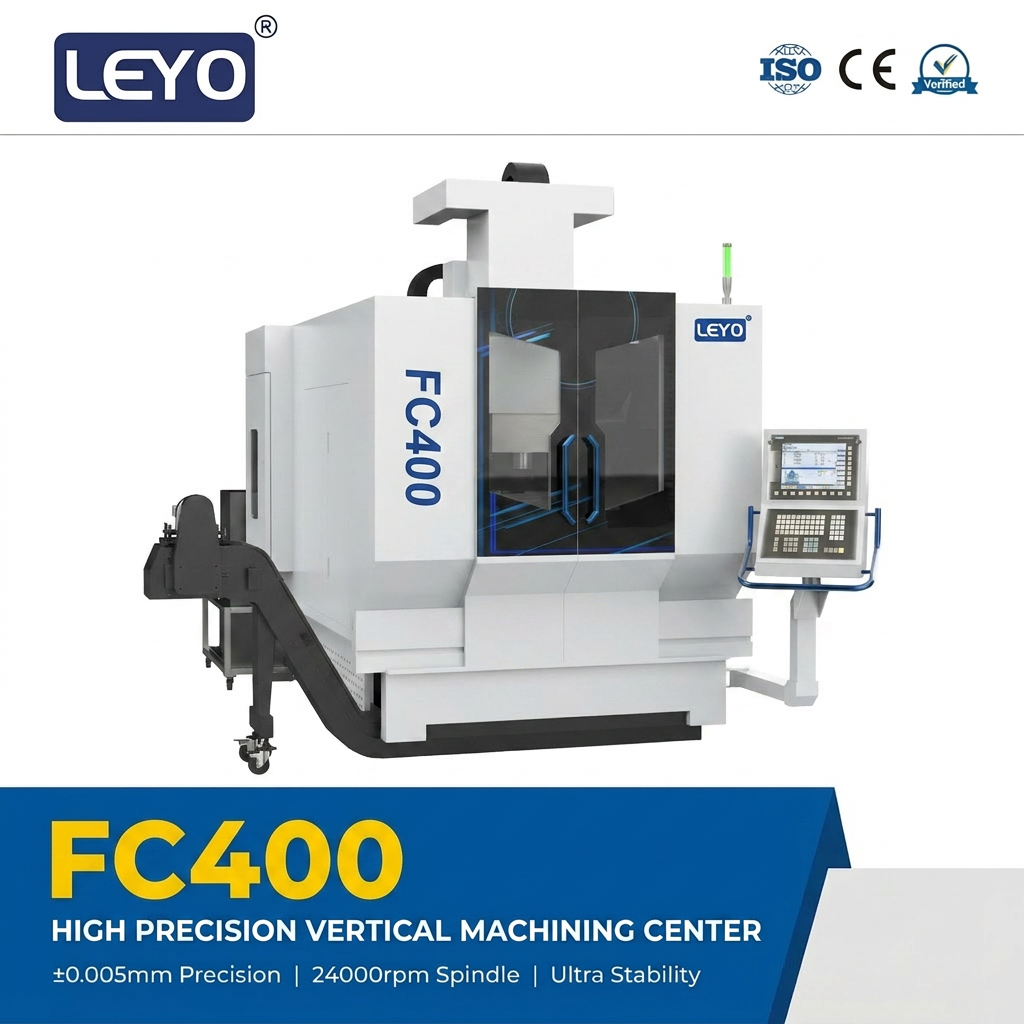

FC400 5-Axis Crown-Type Gantry Machining Center | Simultaneous 5-Axis CNC Milling Machine for Precision Complex Parts

The FC400 five-axis crown-type gantry machining center redefines precision machining for small to medium-sized complex workpieces. Built on a thermally symmetric fixed-bridge (crown-type) gantry frame, the machine maintains geometric stability even during prolonged high-speed cutting. This simultaneous 5-axis CNC machining center integrates a high-rigidity spindle, high-precision roller guideways, and direct-drive rotary axes to execute full 5-face machining in a single setup. The compact footprint makes it a smart choice for factories with limited floor space, while its robust construction ensures reliable performance on tough materials like titanium, Inconel, and hardened tool steels. Designed for manufacturers serving global supply chains, the FC400 delivers the accuracy, repeatability, and productivity required to win more international machining contracts.

Technical Specifications

Features & Advantages

True Simultaneous 5-Axis Machining: Full 5-axis linkage for sculptured surfaces, impellers, and complex molds, eliminating multiple setups and reducing cycle time.

Crown-Type Fixed Gantry Structure: Symmetrical bridge design maximizes rigidity and thermal stability, crucial for micron-level precision in a gantry machining center.

Compact & Space-Saving Footprint: Gets a heavy-duty 5-axis gantry capacity into a smaller installation area, lowering shop floor requirements.

Direct-Drive Rotary Table: Torque motor-driven A and C axes provide zero backlash, faster dynamic response, and superior surface finish.

High-Speed Spindle with Ceramic Bearings: Ensures low vibration and extended life at high RPMs, ideal for small-diameter tools and fine finishing.

Full Closed-Loop Linear Scales: Glass scale feedback on all linear axes as standard, guaranteeing consistent positioning accuracy in high-volume 5-axis CNC production.

User-Friendly 5-Axis CNC Control: Siemens or Heidenhain controls with conversational programming, kinematics calibration, and advanced cycle packages simplify complex part programming.

Optimized Chip Evacuation: Steep vertical bed design plus standard coolant flush efficiently remove chips, enabling lights-out unattended operation.

Rigid Guideways & Ballscrews: Heavy-duty roller linear guideways and double-nut preloaded ballscrews deliver heavy cutting capability alongside high rapid speeds.

Application Scenarios

• Aerospace & Energy: Turbine blades, blisks, impellers, and structural brackets in aluminum, titanium, and superalloys.

• Precision Mold & Die: Injection mold cores with deep ribs, EDM electrode manufacturing, and die-casting tooling requiring high surface finish.

• Medical Device Machining: Orthopedic implants, spinal cages, dental abutments, and surgical instruments in stainless steel and PEEK.

• Automotive & Motorsport: Turbocharger compressor wheels, high-performance transmission parts, and prototype aluminum components.

• Optics & Watchmaking: Complex micro-machined housings, lens mounts, and high-polish surfaces on miniaturized parts.

FAQ

Q1: Is the FC400 a machine tool that performs 5-axis positioning simultaneously or 3+2-axis positioning?

A: The FC400 is a genuine five-axis machining center. It utilizes Siemens or Heidenhain control systems and direct-drive rotary axes, enabling it to execute complex freeform surface tool paths, such as impeller machining and multi-axis surface finishing, achieving full five-axis linkage.

Q2: What materials can the FC400 five-axis gantry milling machine process?

A: It can process materials ranging from aluminum and brass to stainless steel, titanium, inconel, and quenched tool steel. Equipped with an optional high-torque spindle, it perfectly adapts to various needs, from high-speed cutting of non-ferrous metals to machining of cemented carbides.

Q3: What is the minimum order quantity and typical delivery time?

A: The minimum order quantity is 1 unit. The standard delivery time for the FC400 five-axis CNC machine tool is 60 to 90 days, depending on the customization. Sometimes, we can provide expedited configuration services; please contact our sales team.

Q4: How is the machine installed, and how is operator training conducted?

Answer: We provide remote technical guidance. In addition, we also offer comprehensive English manuals, maintenance videos, and CAM post-processor support.

Q5: Do you provide post-processors for my CAM system?

A: Yes, we provide post-processors for mainstream CAD/CAM software such as Siemens NX, Mastercam, HyperMill, and PowerMill, and validate them to ensure they match the kinematic characteristics of your specific machine tool, thereby immediately enhancing production efficiency.

Q6: What kind of warranty and after-sales service do you provide?

Answer: The entire five-axis gantry machining center comes with a 12-month warranty. We offer lifelong remote diagnostic services, swift delivery of spare parts via international courier, and provide wear parts kits for preventive maintenance.

Q7: How rigid is the crown-type gantry design used for heavy-duty cutting?

A: The crown-type fixed bridge structure itself is more rigid than the C-frame design and exhibits symmetrical thermal expansion characteristics. This ensures stability and high precision for heavy milling during long-term production operations.

Q8: Can this machine be customized for automated production lines?

Answer: Of course. The FC400 can be equipped with automatic doors, pneumatic/hydraulic fixtures, robot communication protocols, and conveyor interfaces, allowing it to seamlessly integrate into a smart factory environment.

Q9: What certification and shipping documents have been provided?

Answer: Standard supplies include CE Declaration of Conformity, factory precision test report, packing list, and commercial invoice. We assist with export customs clearance and ensure that the packaging meets the requirements for sea freight containers.

Q10: How can I visit your factory or observe the machine cutting of sample parts?

A: We welcome international buyers and machine tool agents to visit our CNC manufacturing factory.
