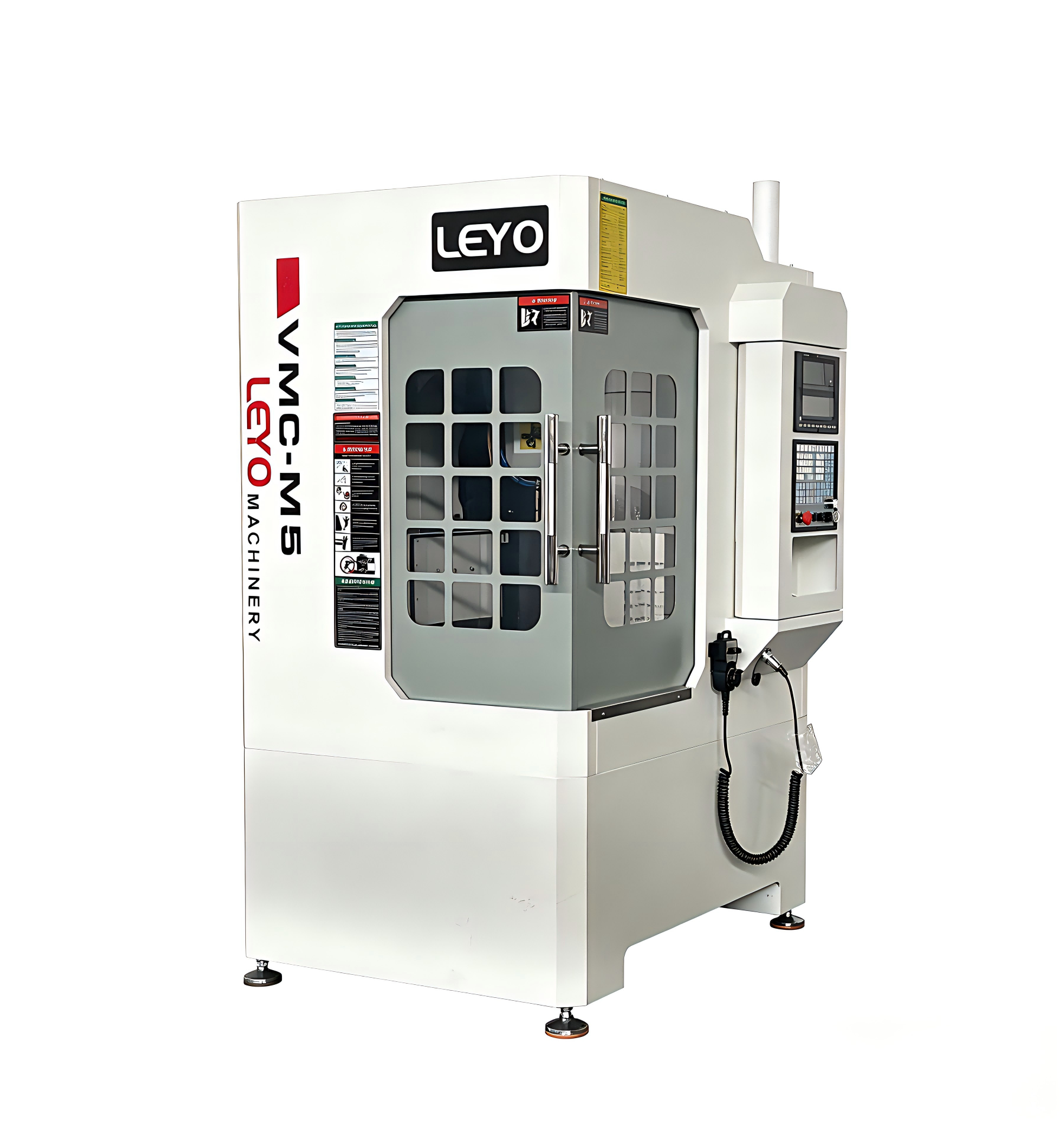

LEYO M5 High-Speed CNC Milling Machine for Precision Mold Processing

The LEYO M5 CNC Milling Machine is a high-speed, high-precision machining center, purpose-built for precision mold processing and complex, small-batch production. Featuring versatile configurations from 3-axis and an ultra-fast 30,000 RPM motorized spindle, the M5 delivers exceptional surface finishes and micron-level accuracy. With CE and ISO 9001 certifications, it is the trusted choice for demanding industries such as automotive, aerospace, and medical device manufacturing. Experience the difference .

Model:
M5
Brand:
LEYO

Availability:

Quantity:



Inquire Add to Basket PDF Export

Product Description

Structure & Key Features

Monolithic Bed Construction: The ribbed, high-rigidity cast iron frame ensures superior vibration dampening and long-term thermal stability, forming the bedrock of your high-precision operations.

Powerful 30,000 RPM Motorized Spindle: An 11 kW high-speed spindle (BT30 taper), achieving very low noise, quick response, and the ability to efficiently process aluminum, steel, and high-temperature alloys.

12-Tool Servo Magazine: The bamboo-hat style automatic tool changer (ATC) offers higher stability and a longer service life compared to conventional systems, minimizing downtime and keeping your spindle turning.

P-class Roller Linear Guideways: All axes utilize high-precision, preloaded linear guides that provide exceptional smoothness, rigidity, and minimal thermal growth for complex 3D contouring.

Fully Closed-Loop Control: The standard configuration employs absolute encoders to ensure the machine tool’s real-time position against the program, eliminating positioning errors for unmatched stability.

Choose your control platform: the M5 seamlessly integrates with Siemens, FANUC, Mitsubishi, Syntec, or GSK controllers. This flexibility allows you to standardize your shop floor on a familiar CNC system, drastically reducing the operator learning curve and programming time.

The Benefits for You

Unmatched Speed & Productivity: The 30,000 RPM spindle and high rapid traverse rates mean finished parts come off the machine faster. Achieve mirror-like surface finishes that reduce or eliminate secondary hand polishing.

Reduced Setup Time: With optional 4th and 5th axis capabilities, completely machine complex components in a single setup, eliminating costly and time-consuming refixturing.

Built to Last: From the oversized, hardened and ground ballscrews to the heavy-duty linear guides, every component is engineered for decades of trouble-free service, maximizing your ROI.

Specifications at a Glance

Axis Travel: M5 (400/500/200mm)

Worktable: M5 (500x400mm)

Control Systems: GSK / HNC / LNC / SYNTEC / Mitsubishi / Fanuc / Siemens

Certifications: CE, ISO 9001 Certified
