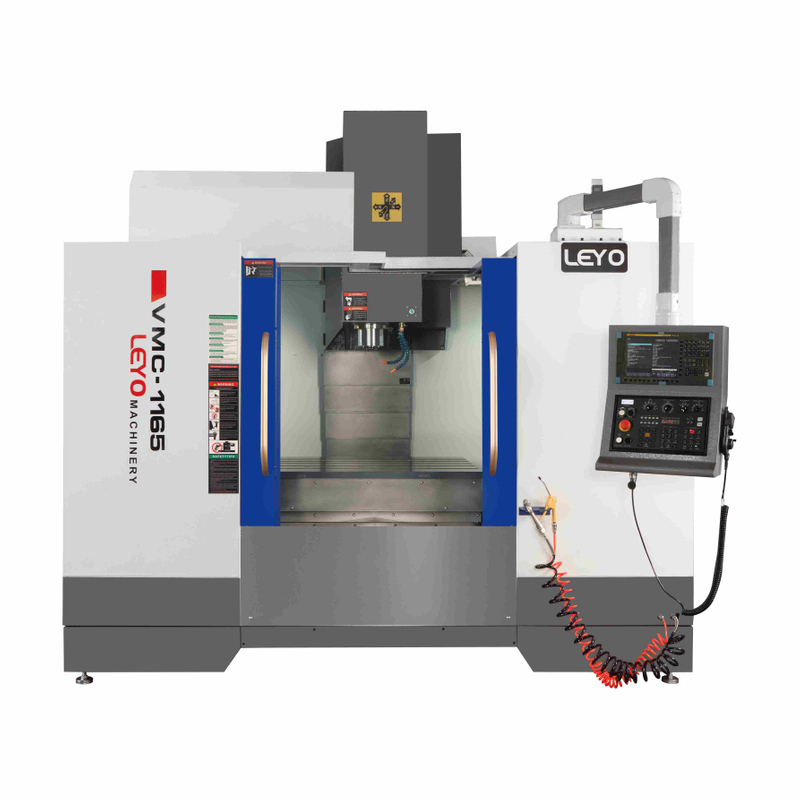

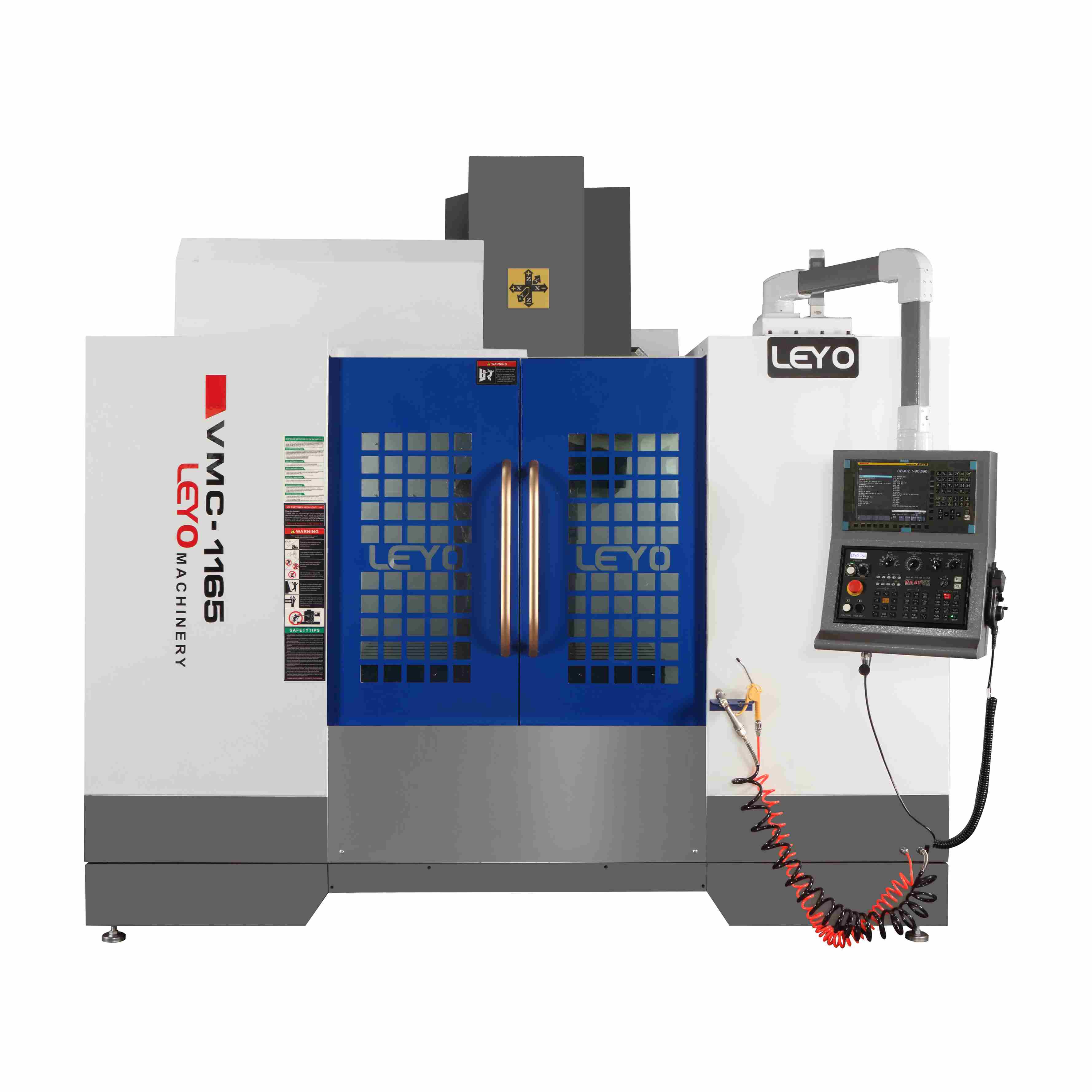

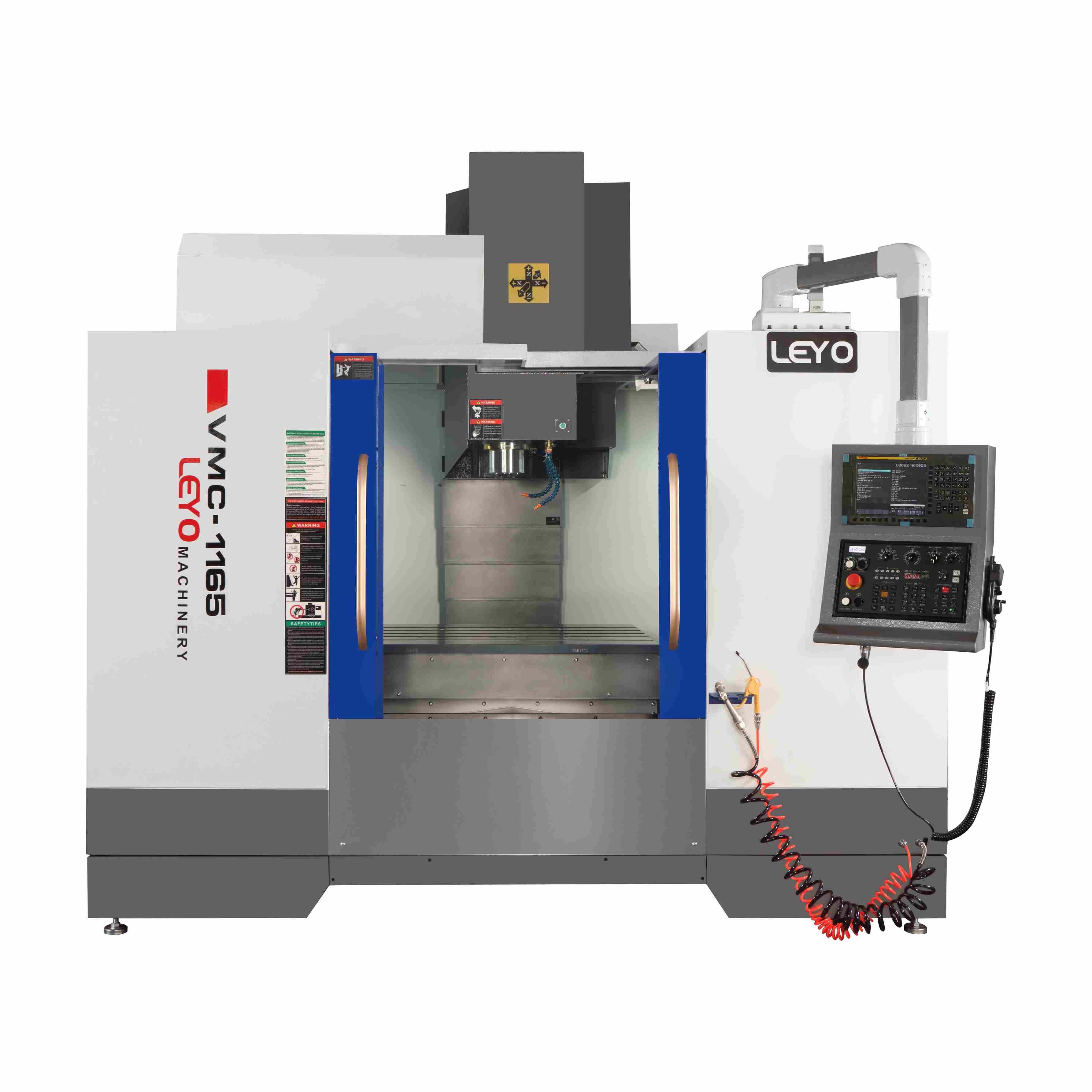

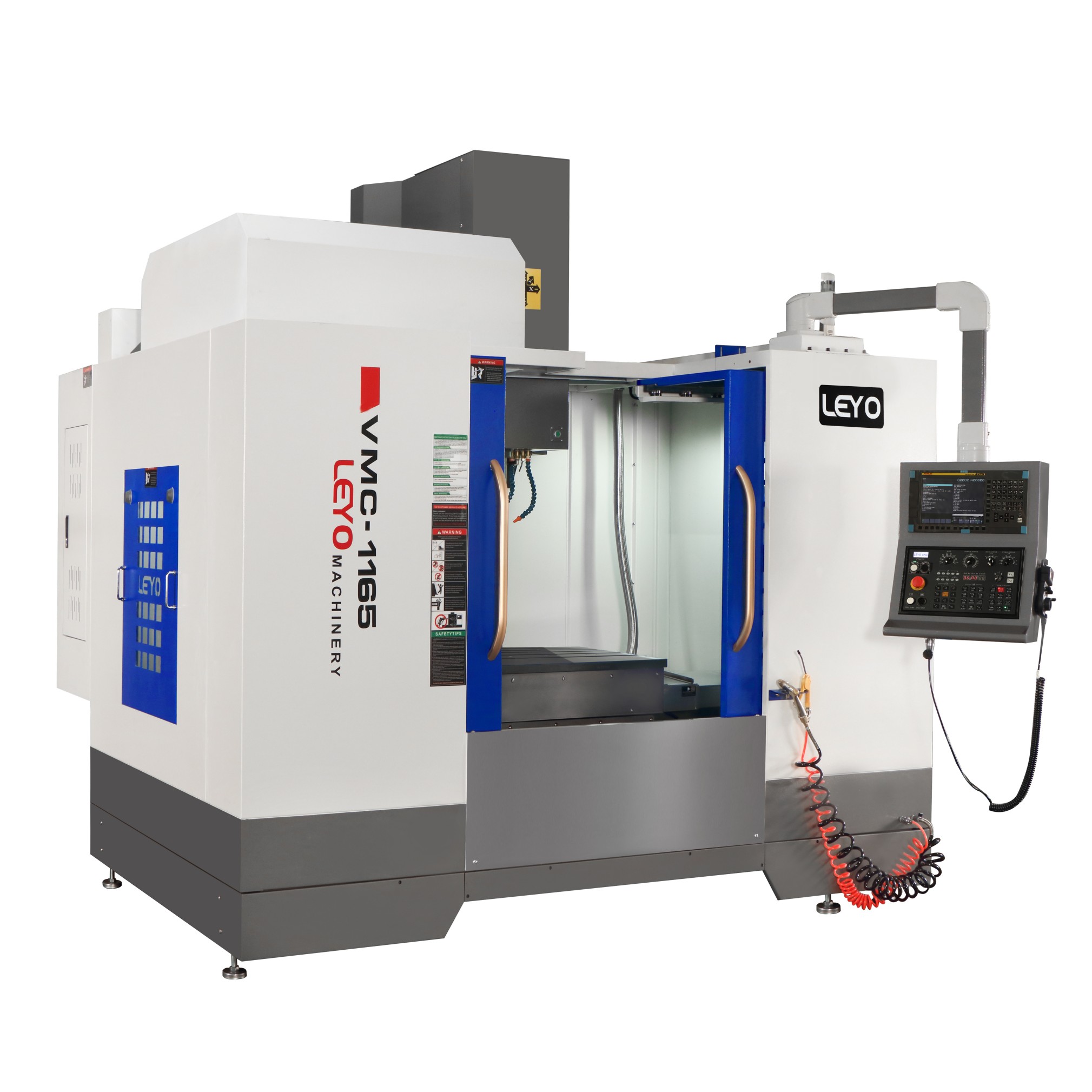

VMC1165
LEYO
| Quantity: | |
|---|---|
| PDF Export | |

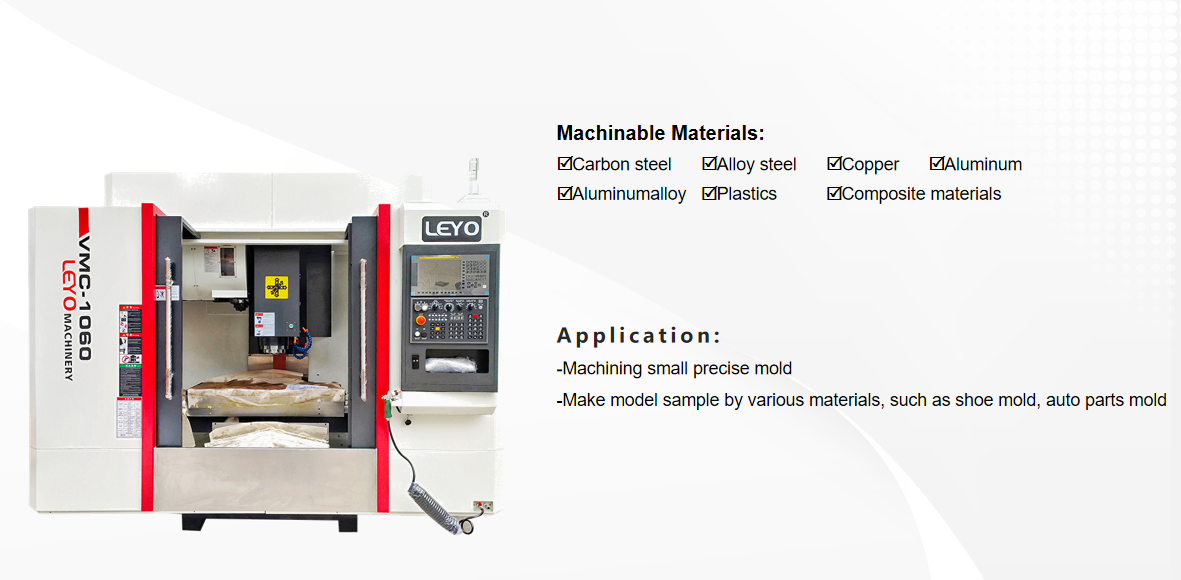

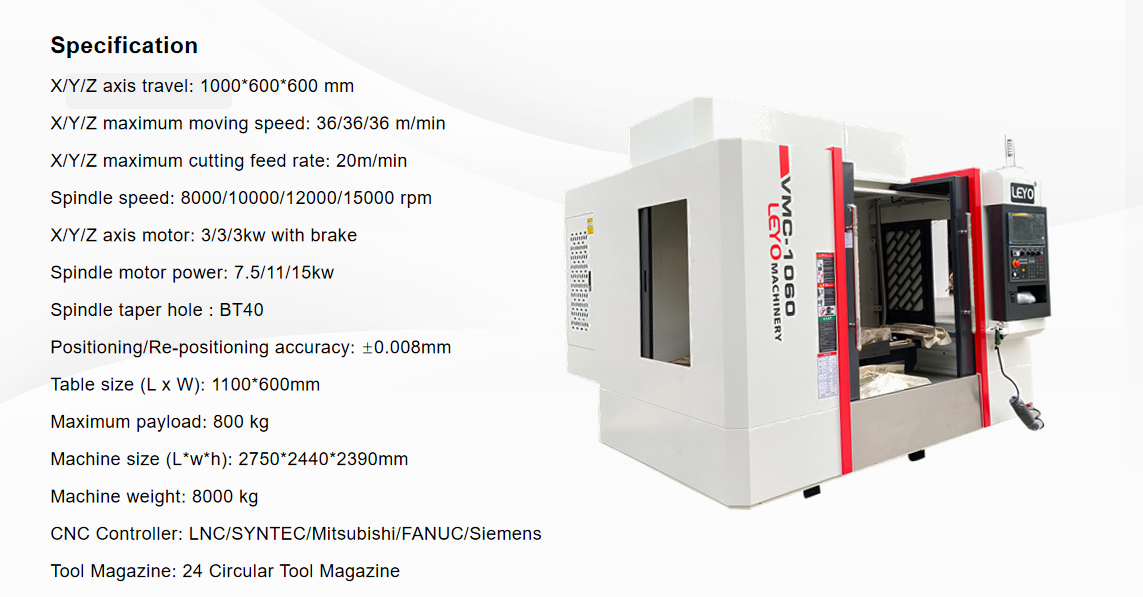

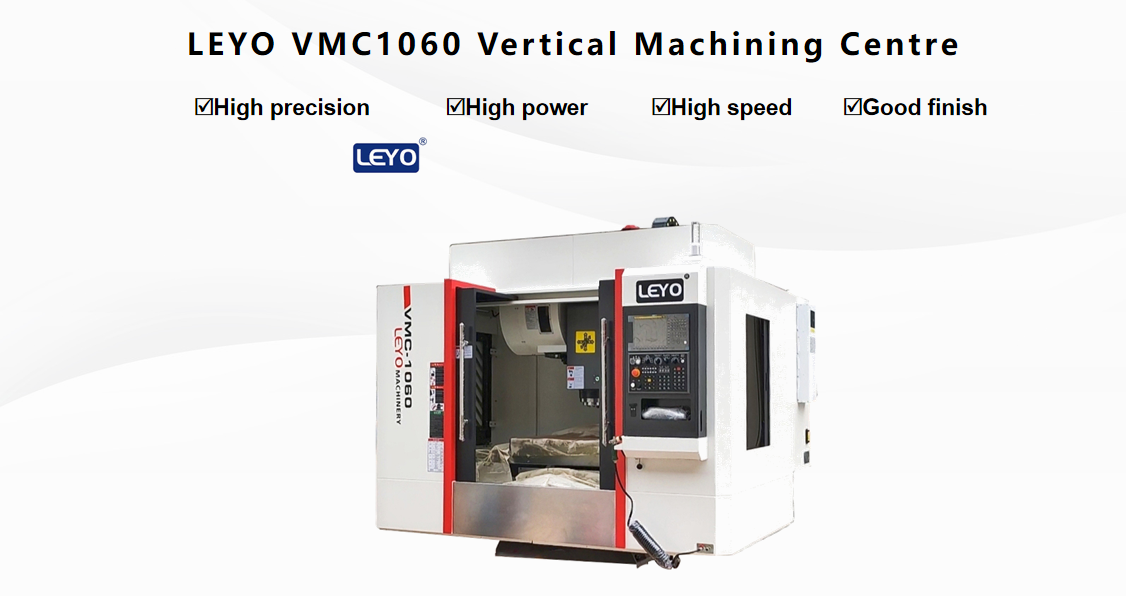

| LEYO VMC1060-VMC1165 Vertical Machining Center Technical Parameters | |||||
| Items | Unit | VMC1060 | VMC1160 | VMC1165 | |
| X/Y/Z axis travel | mm | 1000/600/600 | 1100/600/600 | 1100/650/650 | |
| X/Y/Z rapid moving speed | m | 36/36/36 | 36/36/24 | 36/36/24 | |
| X/Y/Z rapid feeding speed | m | 20 | |||

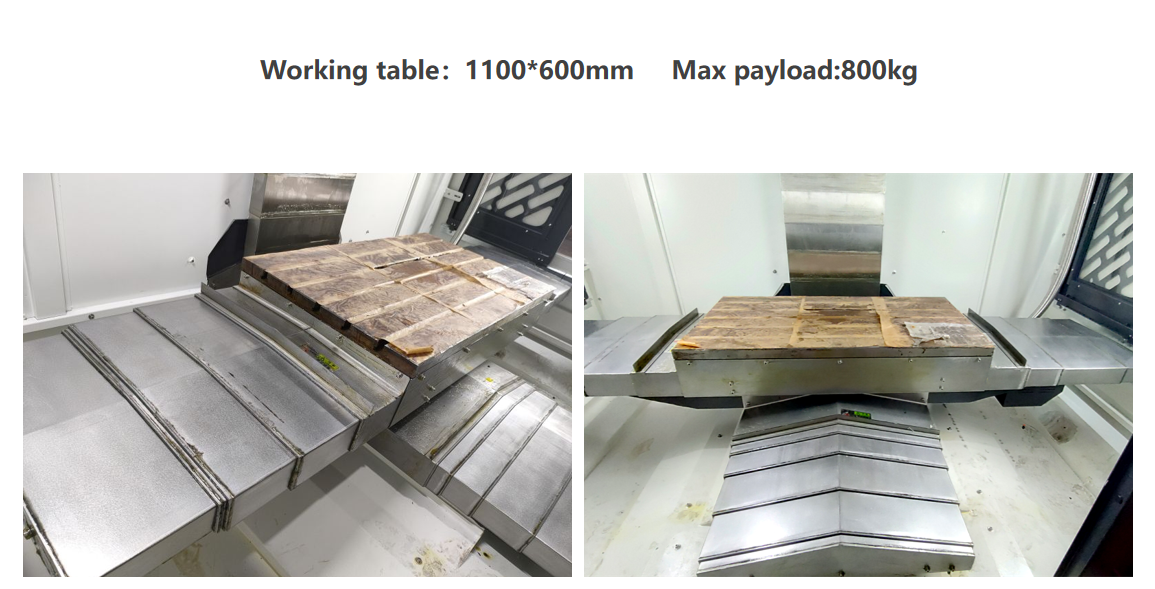

| Working table (L*W) | mm | 1100x600 | 1200*620 | 1200*650 | |
| Working table max load | kg | 800 | 850 | 1000 | |

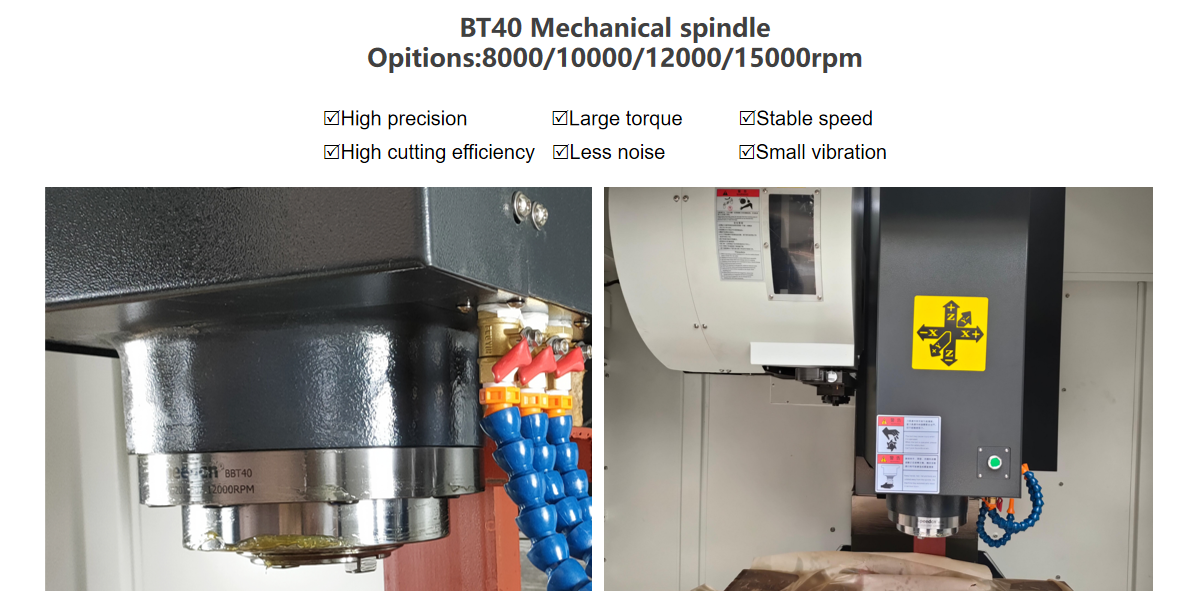

| Spindle taper hole | BT40 | ||||
| Spindle type* | Belt/Direct | ||||
| Spindle motor power* | kw | 7.5/11 | |||
| Spindle speed* | rpm | 8000/10000/12000 | |||

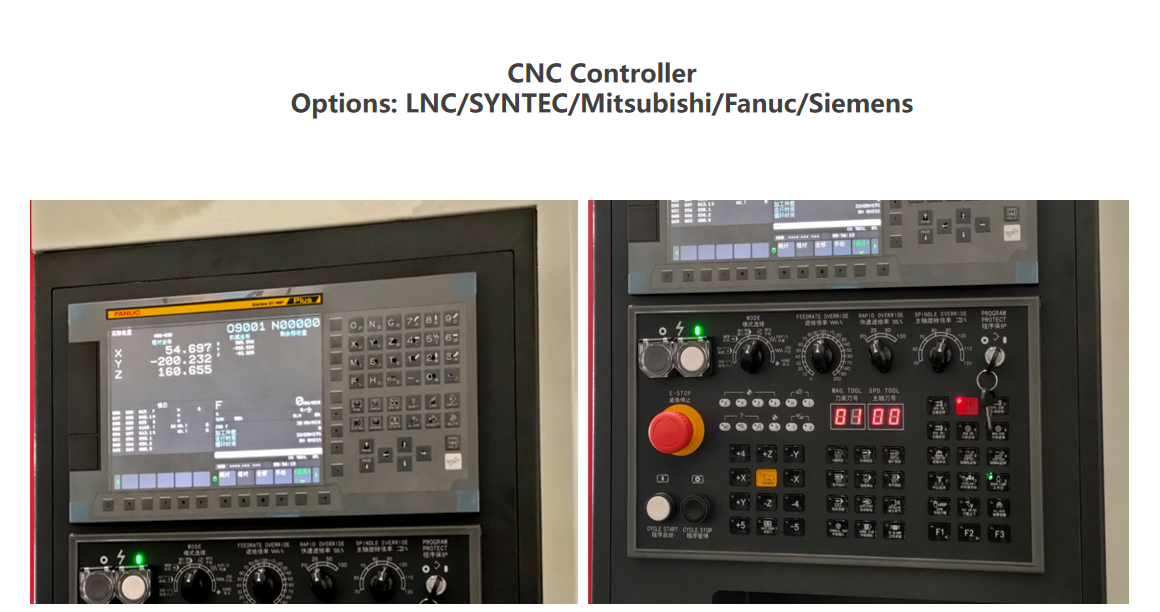

| Controller* | GSK/HNC/LNC/SYNTEC/Mitsubishi/Fanuc/Siemens | ||||

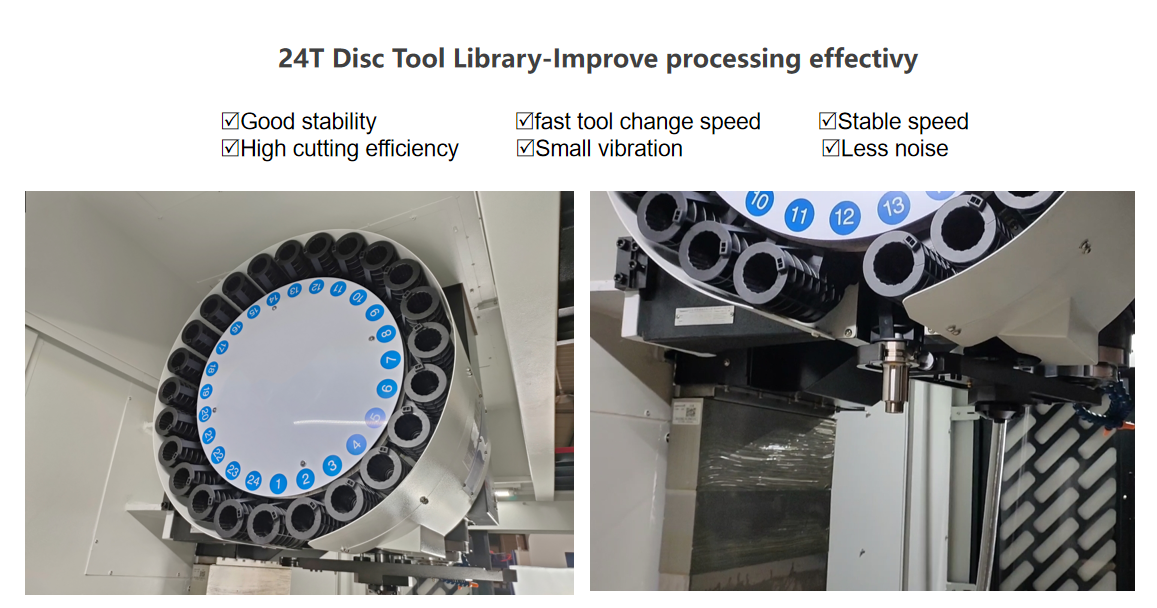

| Tool magazine capacity * | T | 24/None | |||
| X/Y/Z position accuracy | ±0.008 | ||||
| X/Y/Z reposition accuracy | ±0.007 | ||||
| Machine weight | kg | 8000 | 8100 | 8500 | |
| Machine size | mm | 2750*2440*2390 | 2850*2540*2390 | 3150*2640*2490 | |
Tip：The asterisk is optional,and price is different. More requirement contact us. The information above is for reference only. Specific technical parameters can be customized according to customer needs, and the actual specifications shall prevail. | |||||

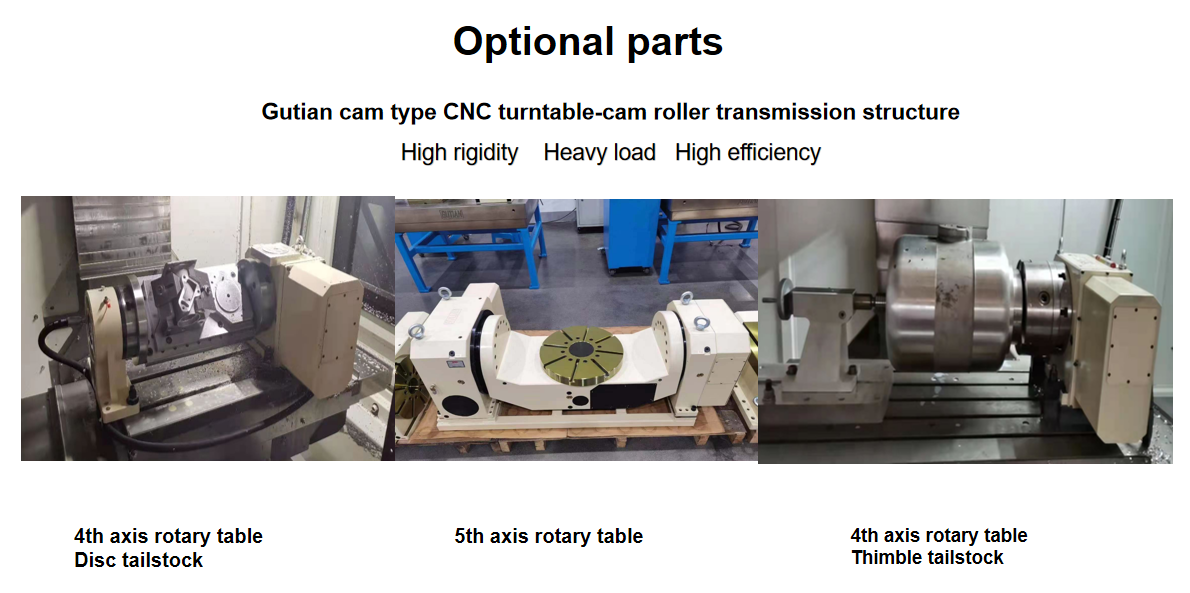

| Optional function: coolant through spindle/chip conveyor/4/5 axis cnc rotary table/oil mist separator/oil skimmer,and so on. Tip:We also can offer other machine accessories and tools:tool holder/collet chuck/cutter,and so on.We provide one-stop solution,more requirement contact us. | |||||
