Vertical Machining Centers And Horizontal Machining Centers: Machining Capabilities And Industry Applications

When choosing between a vertical machining center and a horizontal machining center, it is necessary to understand the performance of each machine type in different machining operations, as well as the industries and workpiece categories that each platform serves most effectively. Although both are CNC machines, they exhibit significant differences in their machining capabilities.

Material removal and re-cutting capability

If evaluated solely based on material removal capabilities, horizontal machining centers (HMCs) possess structural advantages. The orientation of the horizontal spindle aligns the cutting forces with the machine bed, rather than with the column. This shorter force cycle, combined with the typical T-shaped base or box-type frame structure of HMCs, enables deeper cutting depths, higher feed rates, and greater chip loads without triggering regenerative chatter. This is particularly important when machining materials with high cutting pressures, such as cast iron, alloy steel, and titanium.

Vertical machining centers are by no means incapable of performing heavy cutting, but their design imposes practical limitations. The deep cavities in vertical machining centers require long-distance tools, which can increase deflection. Chip evacuation in deep cavities requires high-pressure through-axis coolant—a system that can be added, but it increases cost and complexity. Five-axis vertical machining centers can partially alleviate these limitations by tilting the tool to shorten the tool length and improve chip evacuation.

Multi-face machining: a multiplier of productivity

Perhaps the most significant capability difference lies in multi-facet machining. A standard three-axis VMC can only machine one face of a workpiece per setup. To machine prismatic parts with features on three or more faces, the workpiece must be repositioned multiple times, and each setup may introduce alignment errors. A five-axis CNC machining center can machine more faces through tilting and rotating, but for multi-face batch machining, the machining method based on a vertical machining center is inherently more productive.

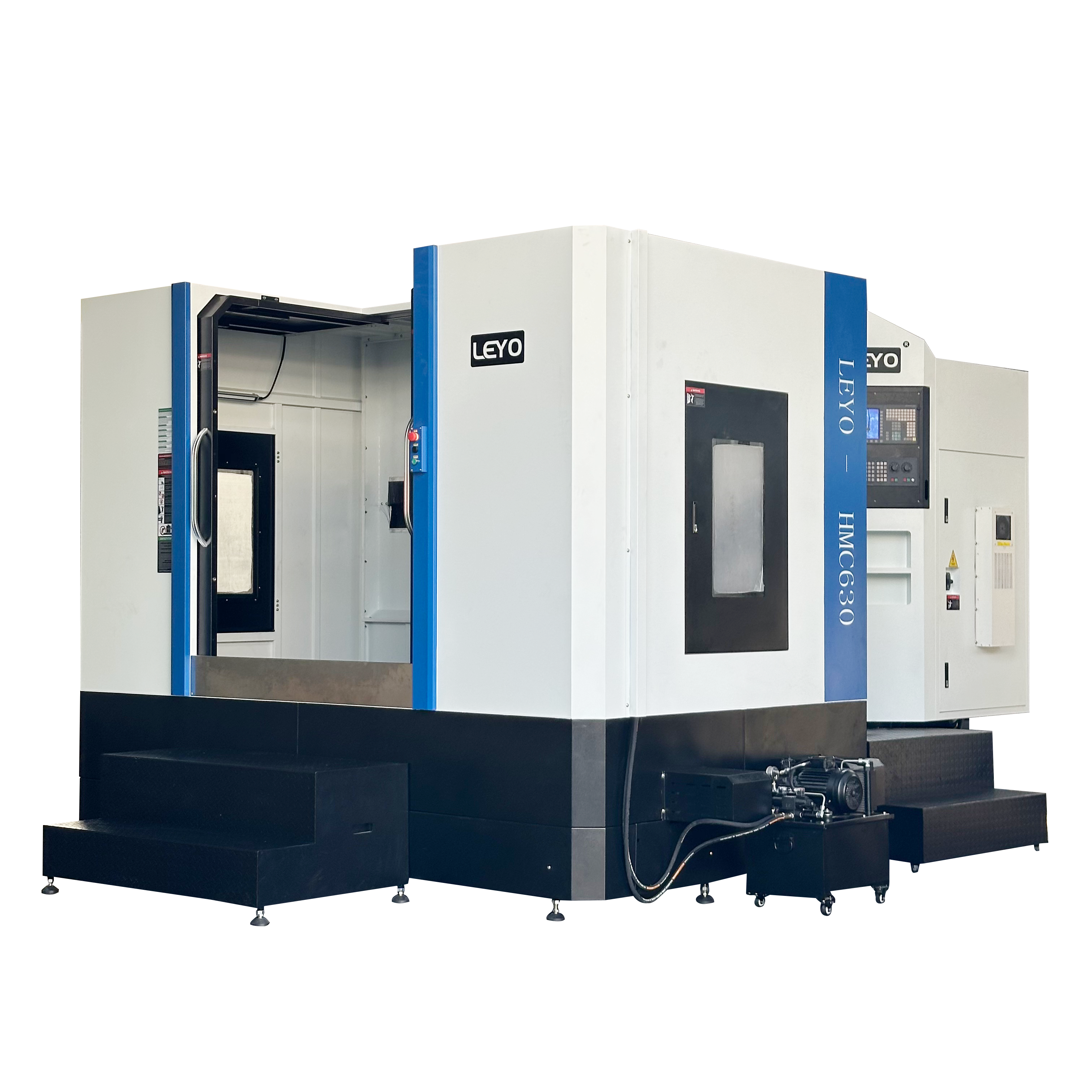

A horizontal machining center (HMC) equipped with a gantry and a complete fourth axis is capable of machining three or more surfaces of a workpiece in a single automatic cycle. When the workpiece is a complex casting, the HMC can complete the machining of all surfaces without re-clamping, thereby significantly reducing the total production time.

Tool library and tool change efficiency

The vertical machining center is equipped with a rotary table or umbrella-type tool magazine, capable of storing 20 to 30 tools. This is sufficient for most prismatic machining tasks, where a limited set of end mills, drills, taps, and boring cutters is adequate.

Horizontal machining centers are typically equipped with side-mounted or chain-type tool magazines, with capacities ranging from 40, 60, 120 tools or even more. Larger tool magazines can accommodate redundant tools - such as repeat drills and end mills for high-wear operations - as well as various tools required for multi-faceted, multi-feature machining. The automatic tool changer of a horizontal machining center is carefully designed to shorten the time between workpieces and minimize non-cutting time in complex machining cycles involving frequent tool changes.

Conclusion: Matching of abilities and needs

Both vertical machining centers and horizontal machining centers are precision CNC machines capable of producing high-quality components. For templates, small prismatic parts, and multi-variety, small-batch work, a vertical machining center is initially more suitable. For multi-faceted prismatic parts, heavy cutting of hard materials, and high-volume automated production, a horizontal machining center is a more capable platform.
