LEYO M Series Cnc Milling Machine Technical Parameters | |||||
Items | Unit | M6 | M7 | M8 | |
X/Y/Z axis travel | mm | 600/500/250 | 700/600/300 | 800/700/330 | |
X/Y/Z rapid moving speed | m | 15 | 24 | ||
X/Y/Z rapid feeding speed | m | 10 | 20 | ||
Working table (L*W) | mm | 600x500 | 700x600 | 800x700 | |
Working table max load | kg | 400 | 600 | 800 | |
Spindle taper hole | BT30 | ||||
Spindle type | Motorized spindle | ||||
Spindle motor power | kw | 11 | |||
Spindle speed | rpm | 30000 | |||
Controller* | GSK/HNC/LNC/SYNTEC/Mitsubishi/Fanuc/Siemens | ||||
Tool magazine capacity * | T | 12 servo/None | |||
X/Y/Z position accuracy | ±0.005 | ||||
X/Y/Z reposition accuracy | ±0.003 | ||||
Machine weight | kg | 3800 | 4200 | 5000 | |
Machine size | mm | 1800*2000*2500 | 1900*2376*2500 | 2000*2400*2600 | |
Tip:The asterisk is optional,and price is different. More requirement contact us. | |||||

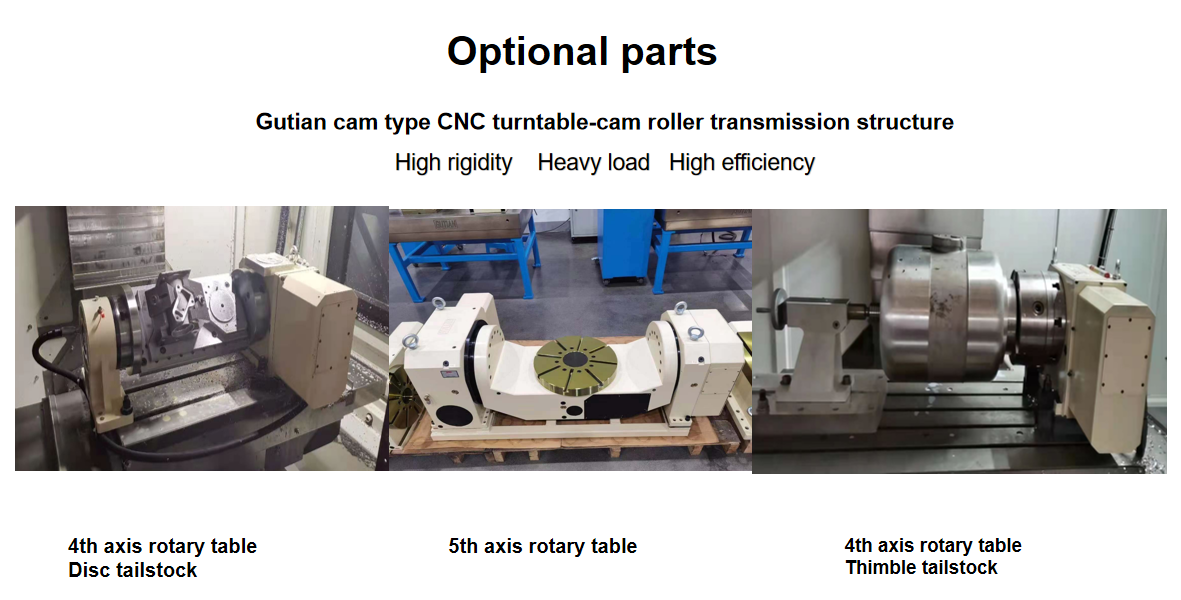

Optional function: coolant through spindle/chip conveyor/4/5 axis cnc rotary table/oil mist separator/oil skimmer,and so on. Tip:We also can offer other machine accessories and tools:tool holder/collet chuck/cutter,and so on.We provide one-stop solution,more requirement contact us. |

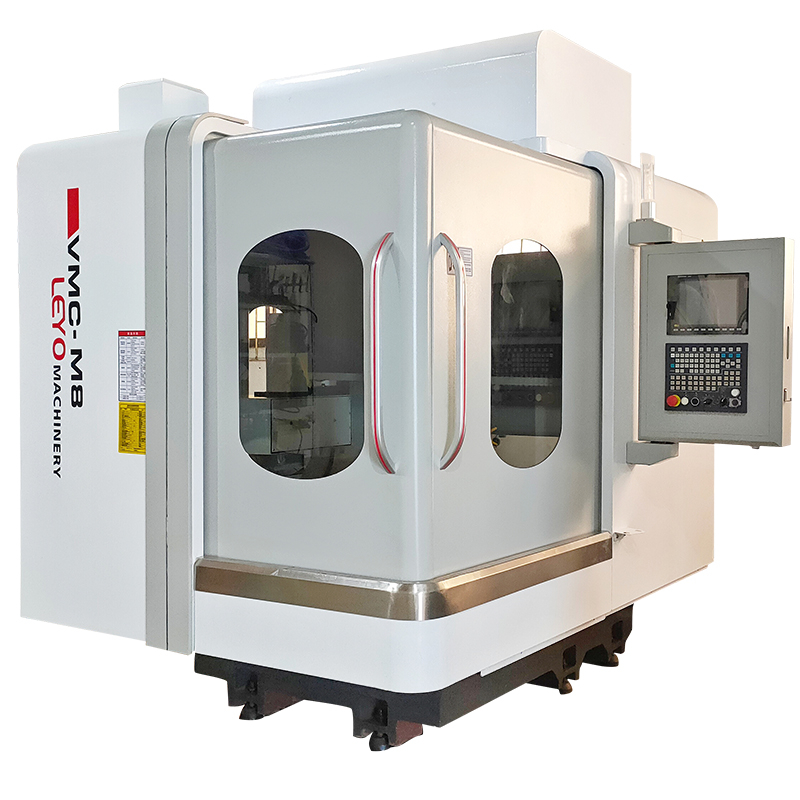

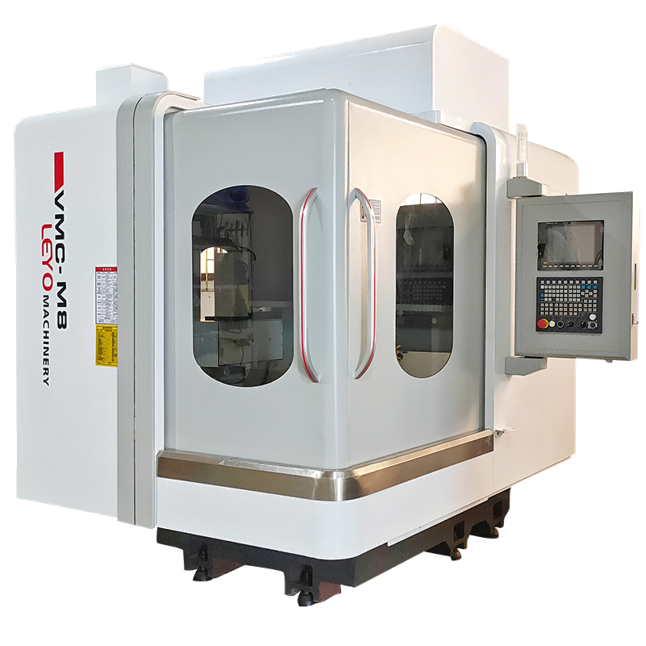

LEYO M8 High Speed CNC Miling Machine

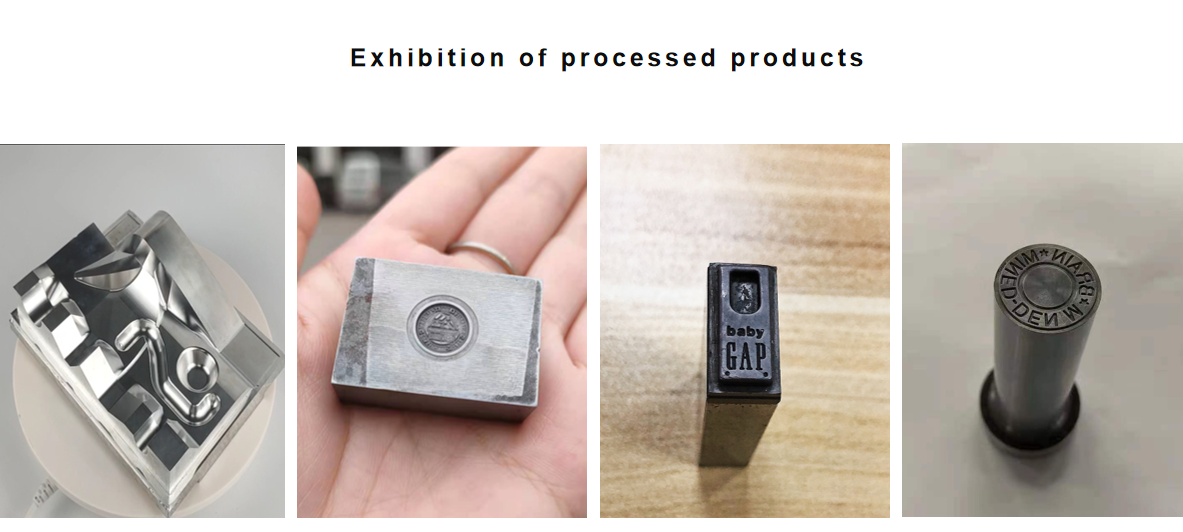

Application:
-Machining small precise mold
-Graphite or copper electrode
-Make model sample by various materials, such as shoe mold, auto parts mold
-Surface engraving, 3D shape engraving, 3D relief engraving and different engraving
Specification
X/Y/Z axis travel:800/700/330 mm
X/Y/Z maximum moving speed:24 m/min
X/Y/Z maximum cutting feed rate:20 m/min
X/Y/Z servo motor power1.3kw with brake
Spindle speed:30000rpm
Spindle motor power:11kw
Spindle taper hole (model /installation size):BT30
Positioning/Re-positioning accuracy:±0.003 mm
Table size (L x W):800*700 mm
Maximum payload:800kg
Machine size (L*w*h):2420*2420*2600 mm
Machine weight:4000 kg
CNC Controller:LNC/SYNTEC
ATC:12T servo ATC
LEYO M6 List of technical parameters and configuration | ||
Items | Parameter | Unit |
X/Y/Z axis travel | 800/700/330 | mm |
X/Y/Z axis fast moving speed | 15 | mm/min |
X/Y/Z axis Cutting feed speed | 12 | mm/min |
Worktable size (L×W) | 800*700 | mm |
Maximum load | 800 | kg |
Spindle Speed | 30000 | rpm |
Spindle motor power | 11 | KW |
Spindle taper hole&Installation diameter | BT30-125 | mm |
T-slot | 5-18×100 | mm |
Distance between spindle end face and worktable | 100-350 | mm |
Controller | LNC/SYNTEC | mm |
Automatic tool library | 12 | T |
Maximum tool diameter(Adjacent vacancy) | 46 | mm |
Maximum tool length | 95-100 | mm |
Maximum tool weight | 1 | kg |
Tool change time (adjacent tool) | 1~2 | Sec |
Positioning accuracy | ±0.005 | mm |
Repeat positioning accuracy | ±0.005 | mm |
Machine dimension (L×W×H) | 2420*2420*2600 | mm |
Machine weight | 4000 | kg |
Power requirement | 5 | KVA |
Required air pressure | 6 | kgf/cm² |
Required gas flow | 0.15 | m²/min |
Main configuration | |||
Items | Specification and model | Place of Origin | Remarks |
Machine frame | HT300 | China | LEYO |
Sheet metal type | Full cover sheet metal | China | LEYO |

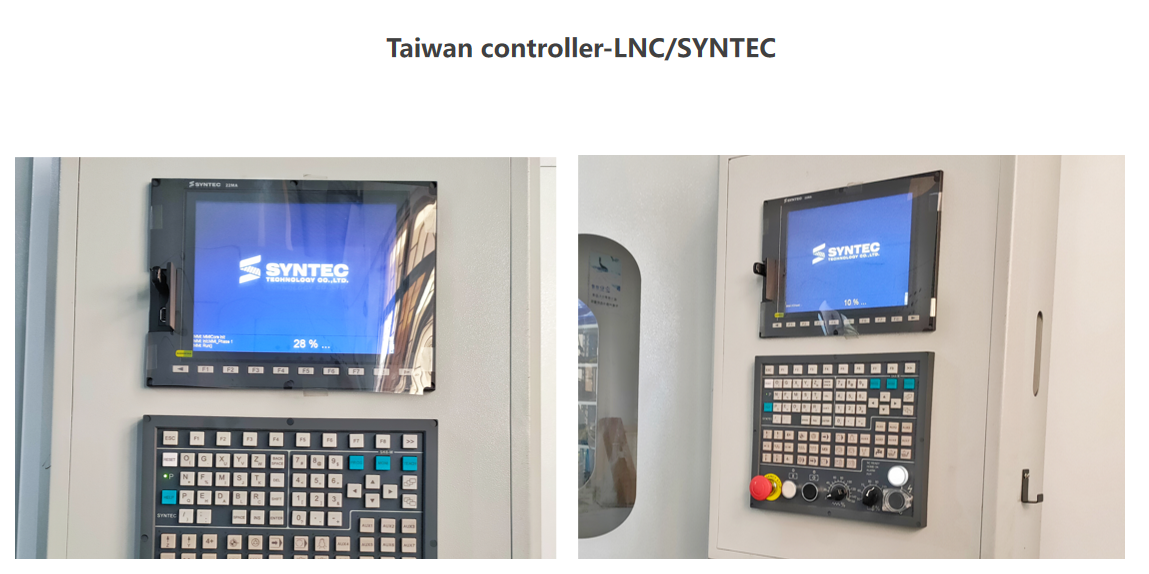

Controller | SYNTEC 22MA | Taiwan,China | SYNTEC |

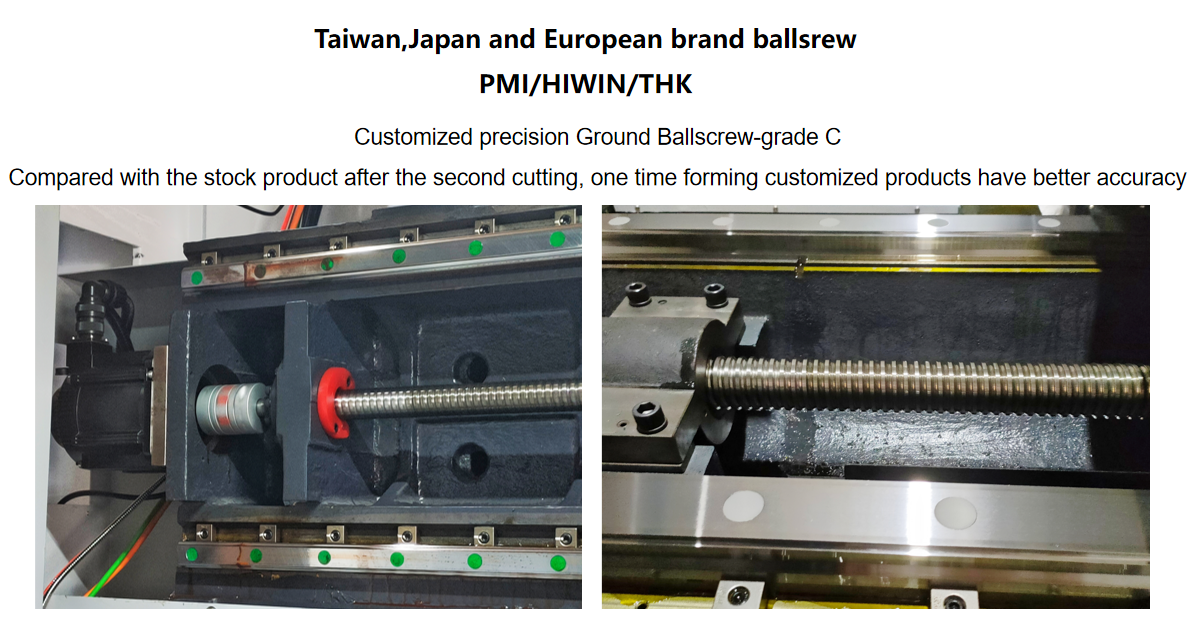

Ballscrews | Φ32*05 C3-level Precision | Taiwan,China/Japan | PMI/HIWIN/THK |

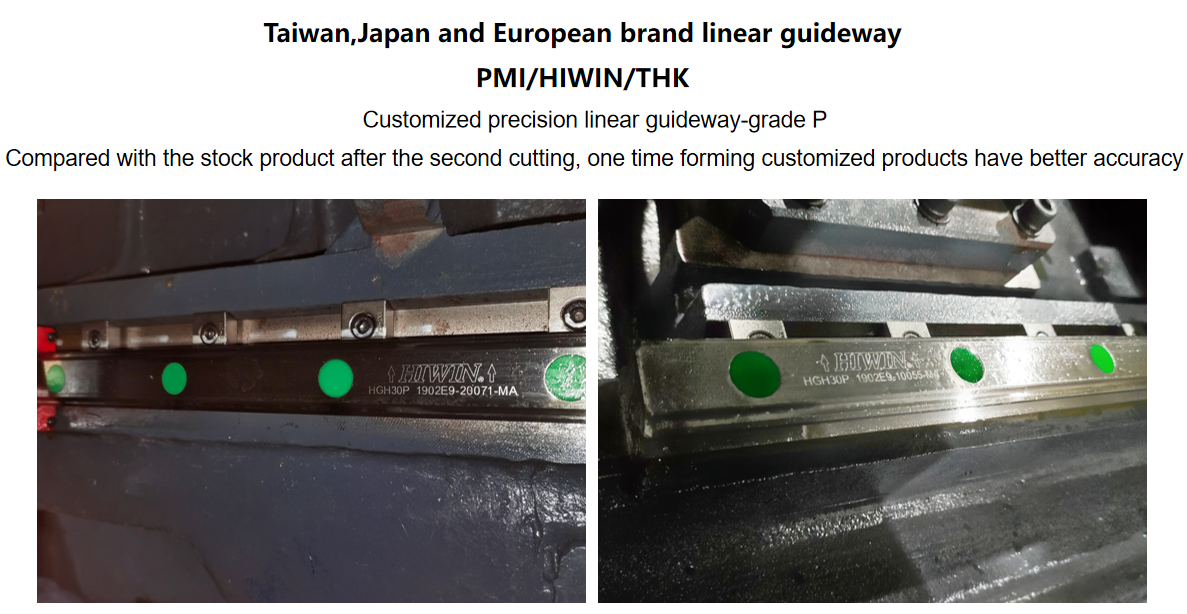

Linear guideway | 30mm/2 P-level Precision | Taiwan,China/Japan | PMI/HIWIN/THK |
Three axis servo motor and drive | SYNTEC/VEIHCHI | Taiwan,China | SYNTEC/VEIHCHI |
Spindle | BT30-30000 rpm Motorized spindle | China | XUCHANG/HUADIAO |
Automatic tool library | 12T servo library | Taiwan,China | LEYO |
Screw rod bearing | FAG/SKF | Switzerland/Germany | FAG/SKF |
Centralized automatic lubrication system | 2L | Taiwan,China | HERG |
Cutting cooling system | Cooling pump and oil tank | Taiwan,China | STAIRS PUMPS |

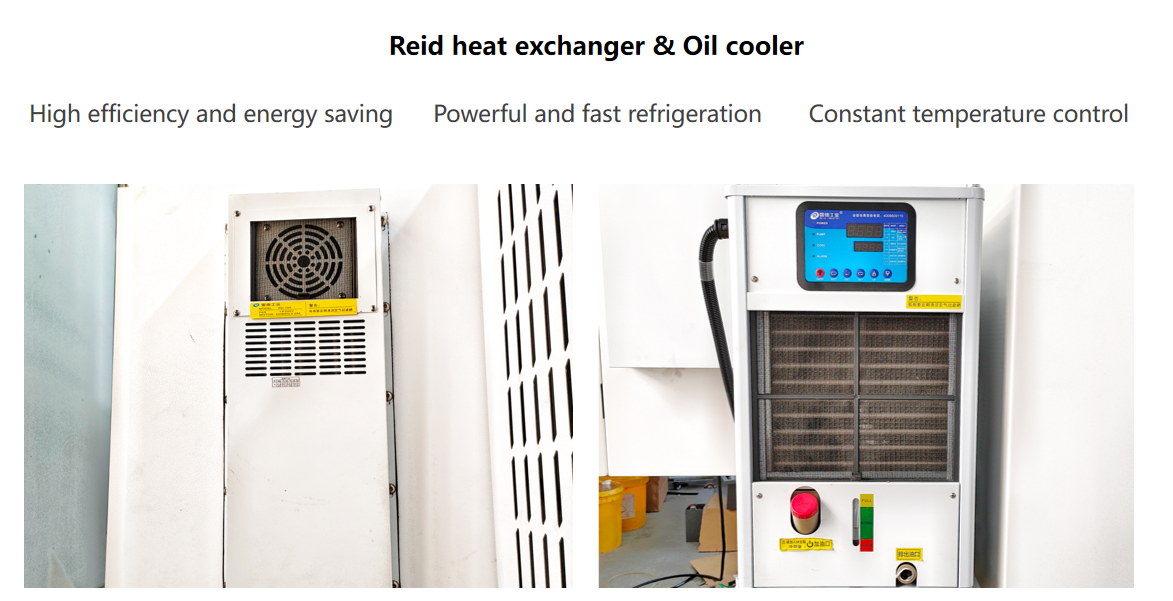

Spindle cooling system | Oil cooler | Taiwan,China | REID |
Electric box cooling system | Convection heat exchanger | Taiwan,China | REID |

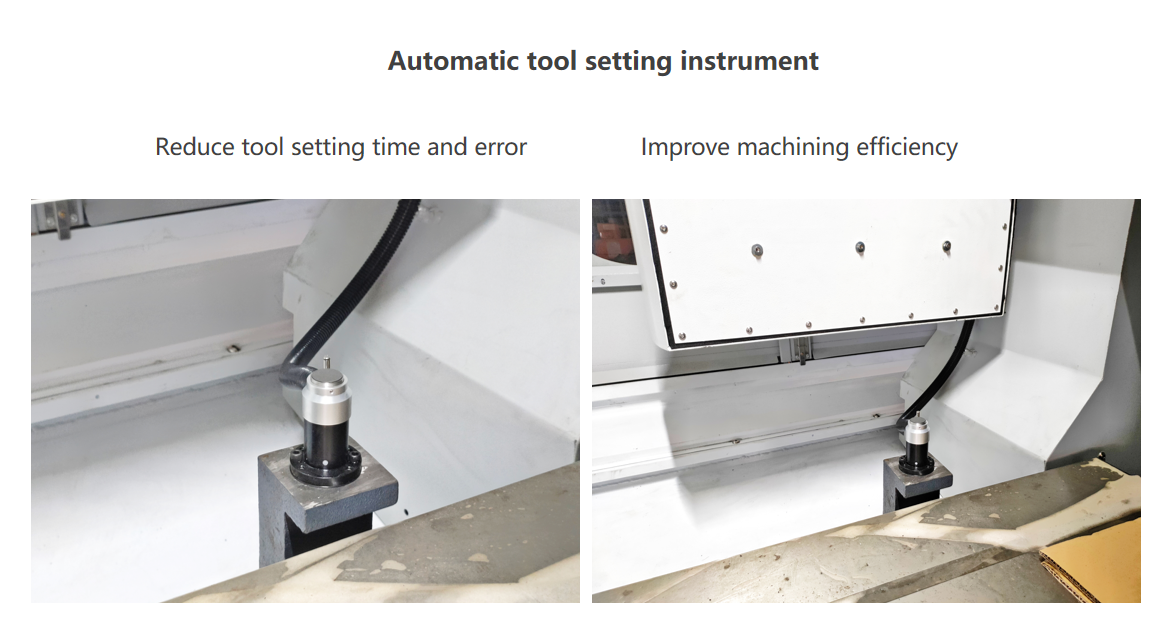

Automatic tool setting instrument | Taiwan,China | LEYO | |
Handwheel | Separated hand wheel | Taiwan,China | LEYO |
Work lighting | LED 24V8W | China | LEYO |
Alarm device | Led 24V three color + buzzer | China | LEYO |
Process blowing system | Taiwan,China | LEYO | |
Automatic power off system | Taiwan,China | LEYO | |
Three axis slide rail telescopic shield | China | LEYO | |
Relay | France | Schneider | |
Electromagnetic contactor | France | Schneider |

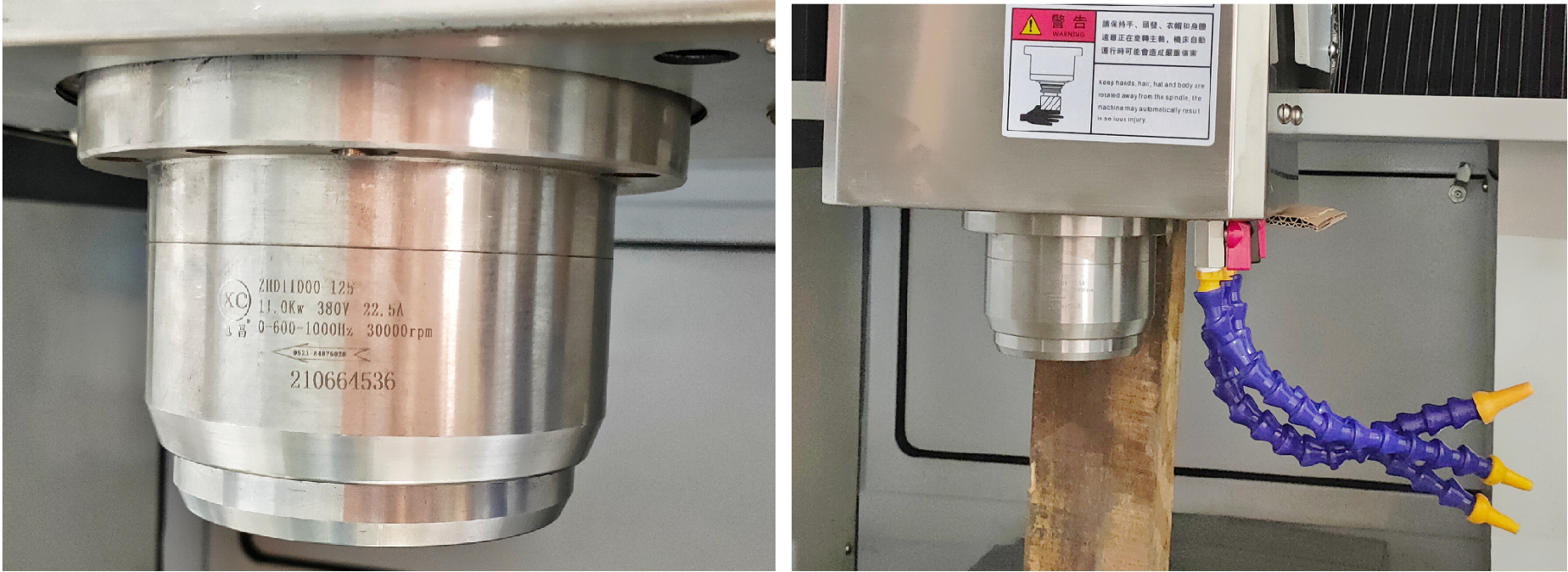

BT30 Motorized spindle with flang 11kw 30000rpm

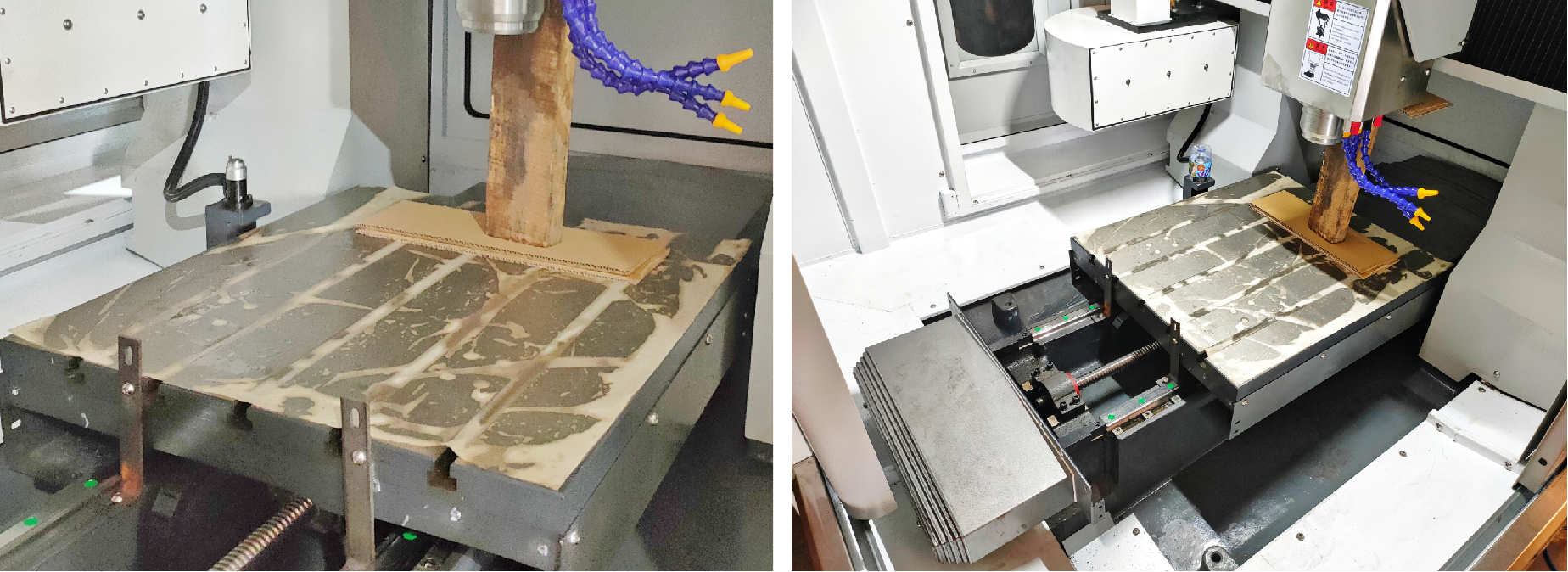

Working table:800*700 Max payload:800kg

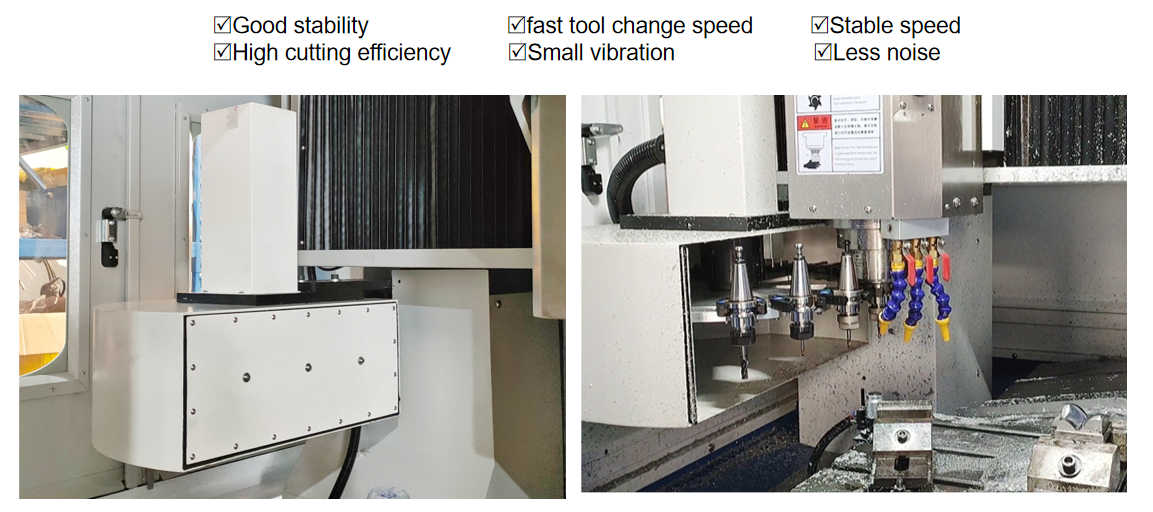

12T Servo Automatic tool library-Improve processing effectivy
